The Plenty TRIRO rotary triple screw pump from Celeros Flow Technology is primarily designed for handling clean lubricating liquids.
It ensures consistent flow and prevents the liquid becoming emulsified, making the Plenty TRIRO the pump of choice for forced lubrication and seal oil circulation applications.
The axial pulse-free pumping action used by the Plenty TRIRO means there are no pulsing hydraulic shock characteristics. The action, which is similar to that of a piston moving constantly in one direction, returns a very low shear characteristic, all of which means that the lubricating fluid being pumped does not degrade during transfer.
The Plenty TRIRO can handle flow rates of 0.1 to 300m3/hr and fluids with viscosities ranging from 2 to 1750 cSt as standard. Custom designs to accommodate higher flow rates and viscosities can be considered. This highly reliable pump will also withstand operating pressures up to 137 bar and operating temperatures of -20◦ to 150◦ C.
The versatile Plenty TRIRO pumps are available in 17 frame sizes with various pitch angles and length and can be specified in many different material combinations. For maximum flexibility, the pump can be pedestal mounted, foot mounted, vertical free standing, sited on the tank top or submerged. All TRIRO pumps are designed to operate at either electric motor synchronous speeds or from direct coupling to a power take-off from the main machinery.
Standard TRIRO designs are available to suit API applications, though most customer and industry standards can be accommodated.

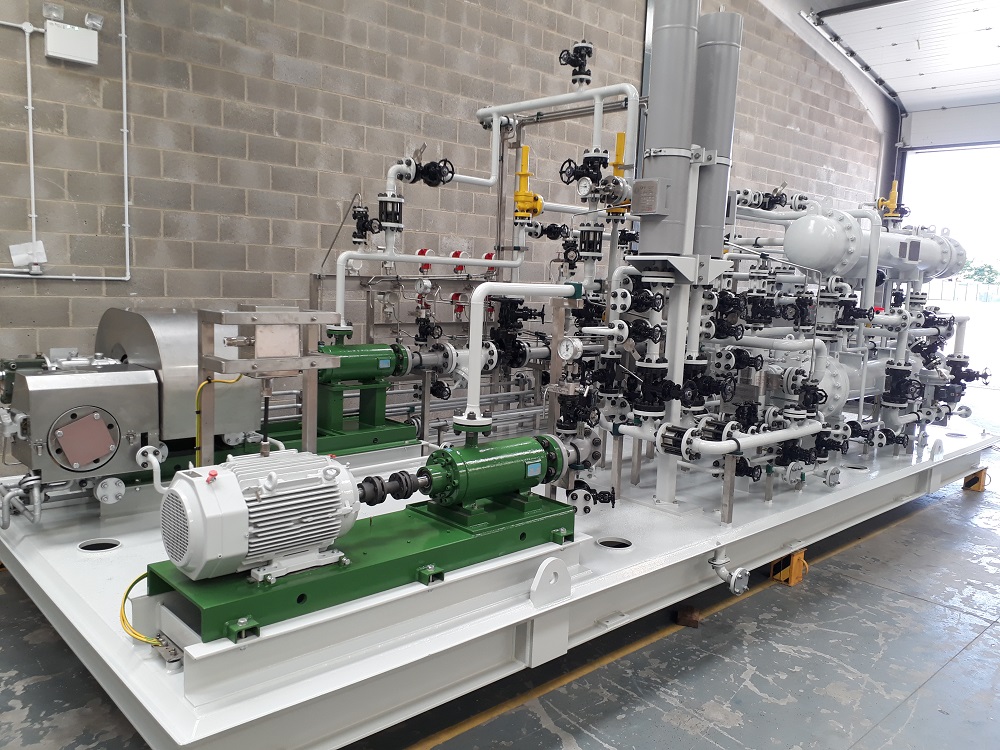

Plenty TRIRO pumps from Celeros Flow Technology deliver optimum oil and seal oil performance
